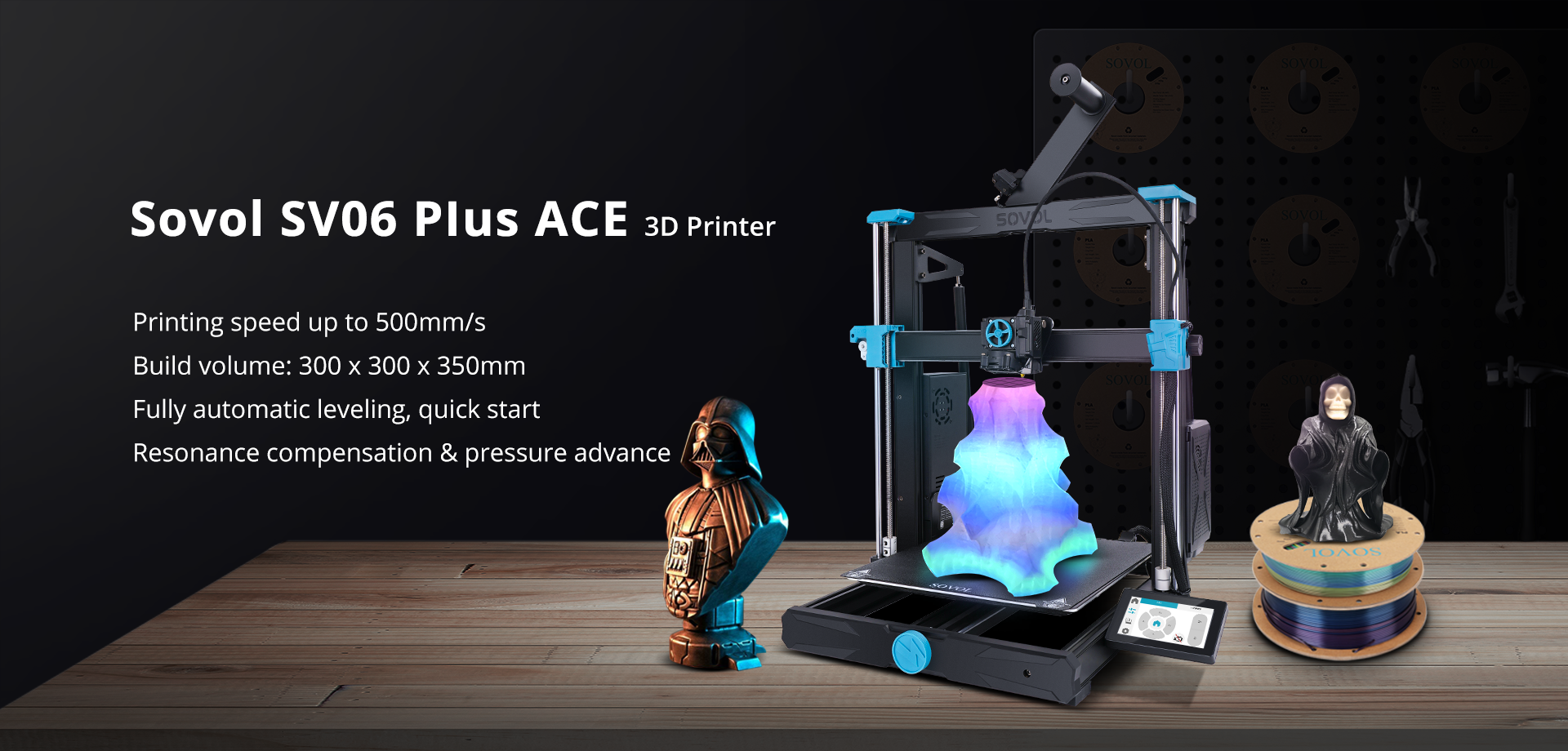

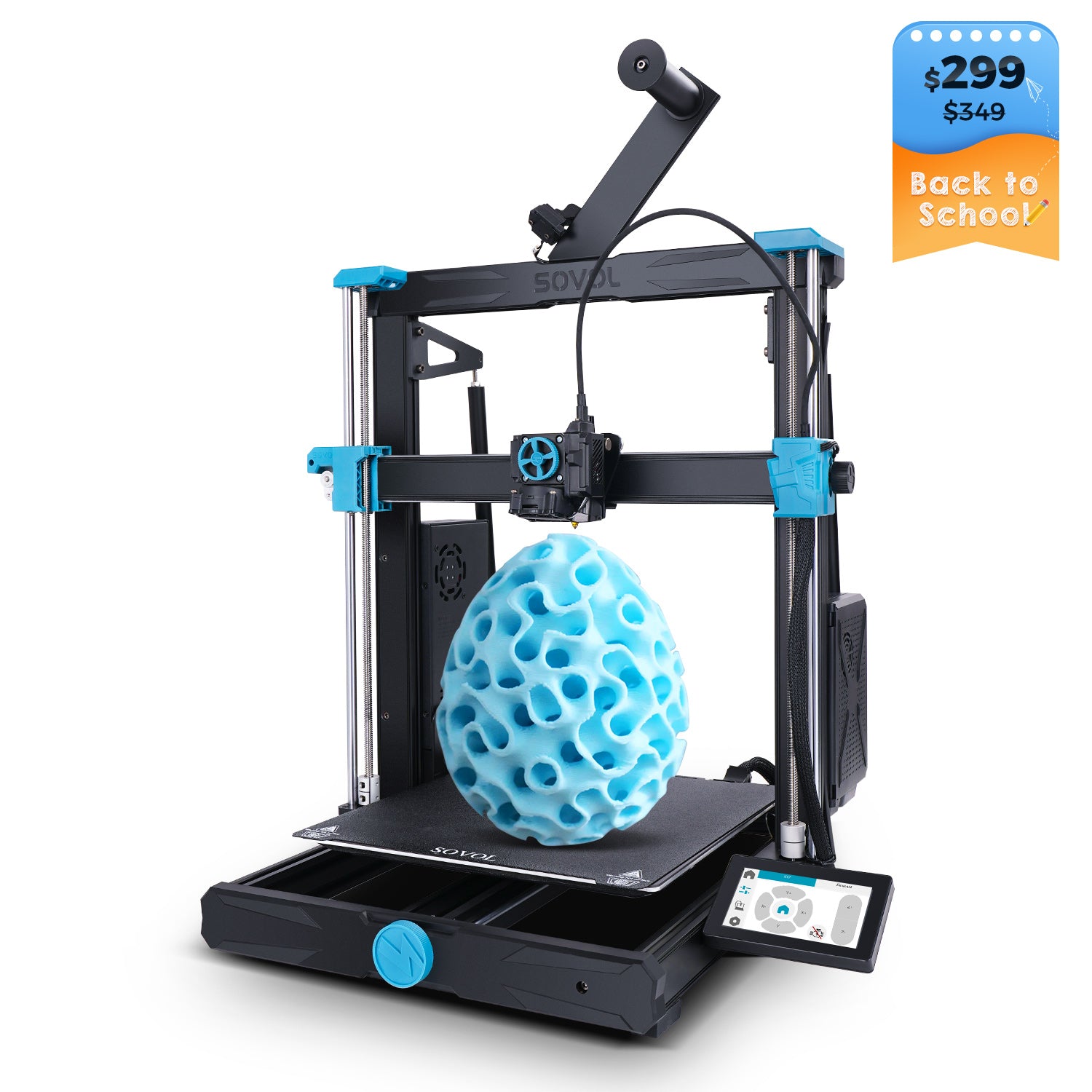

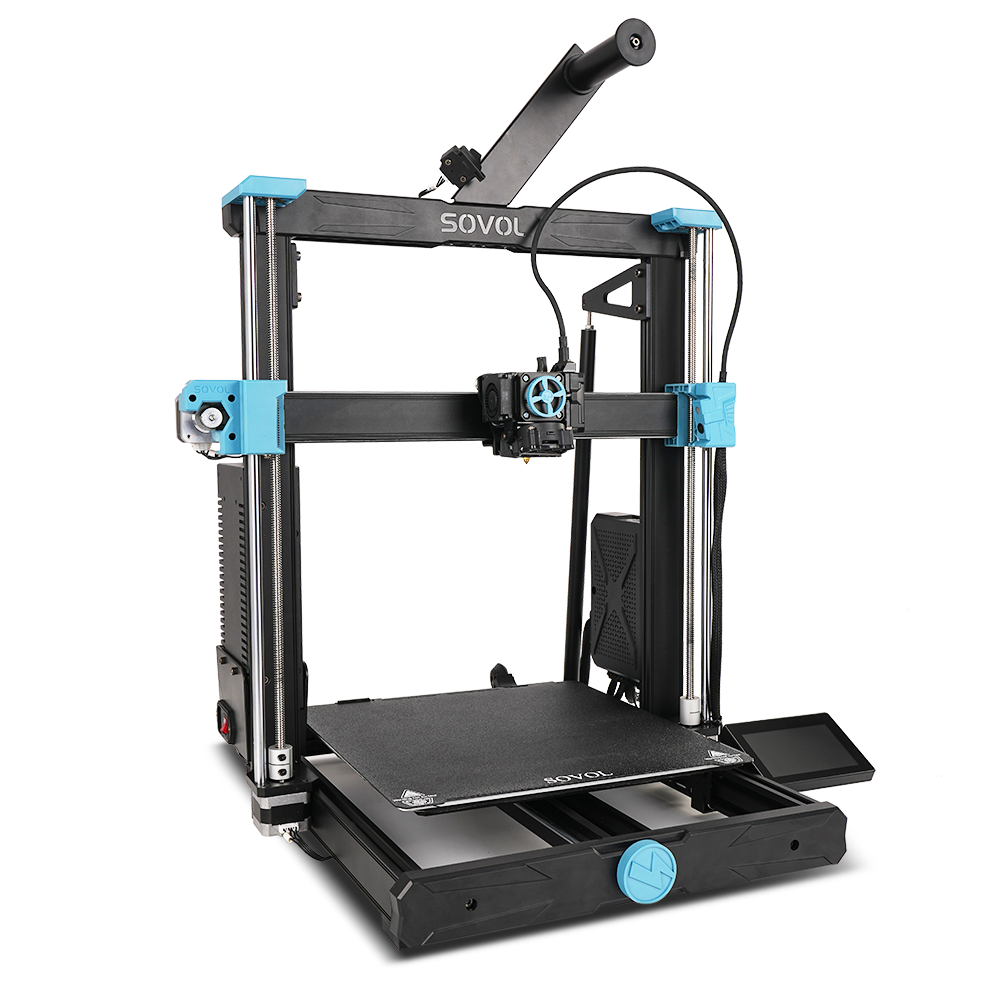

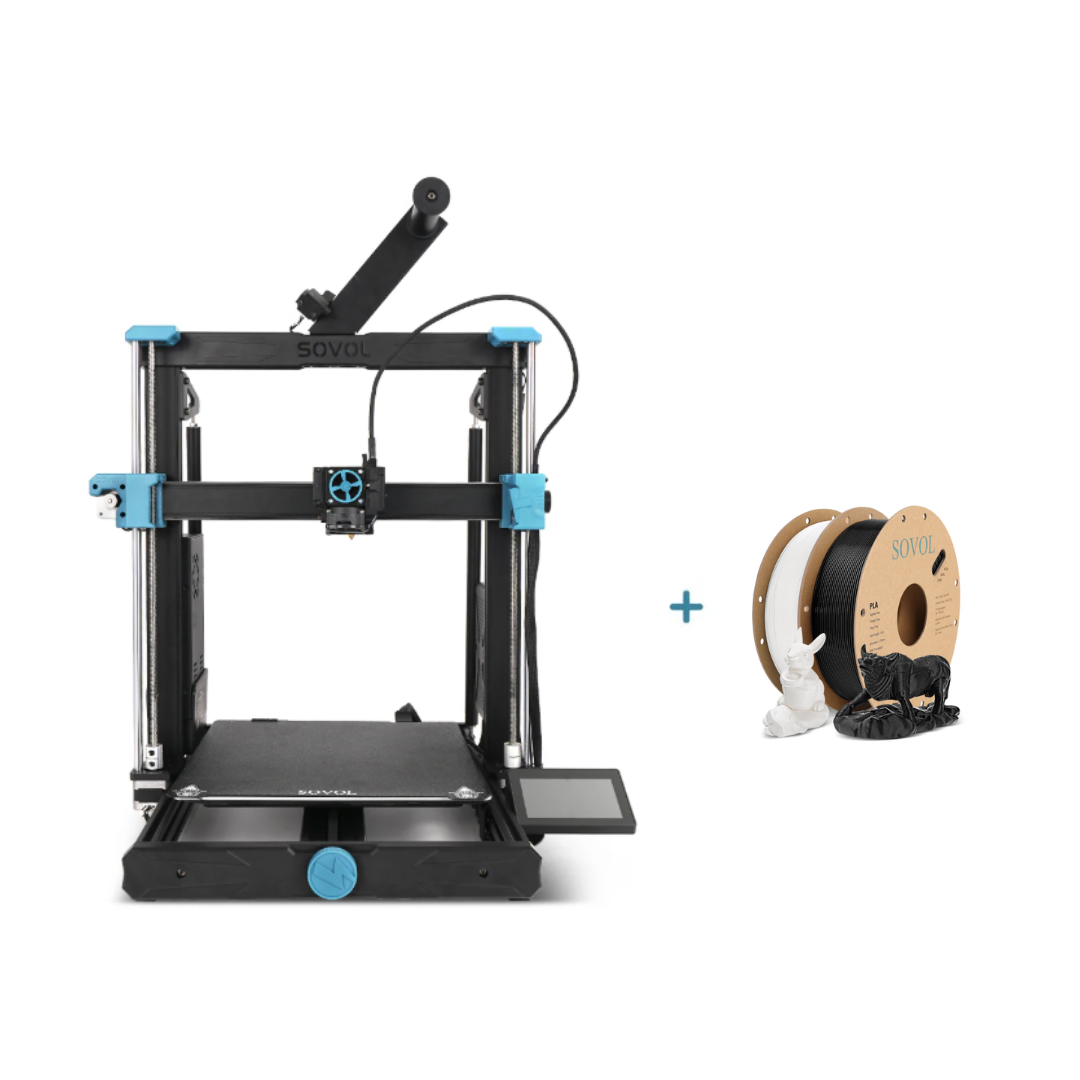

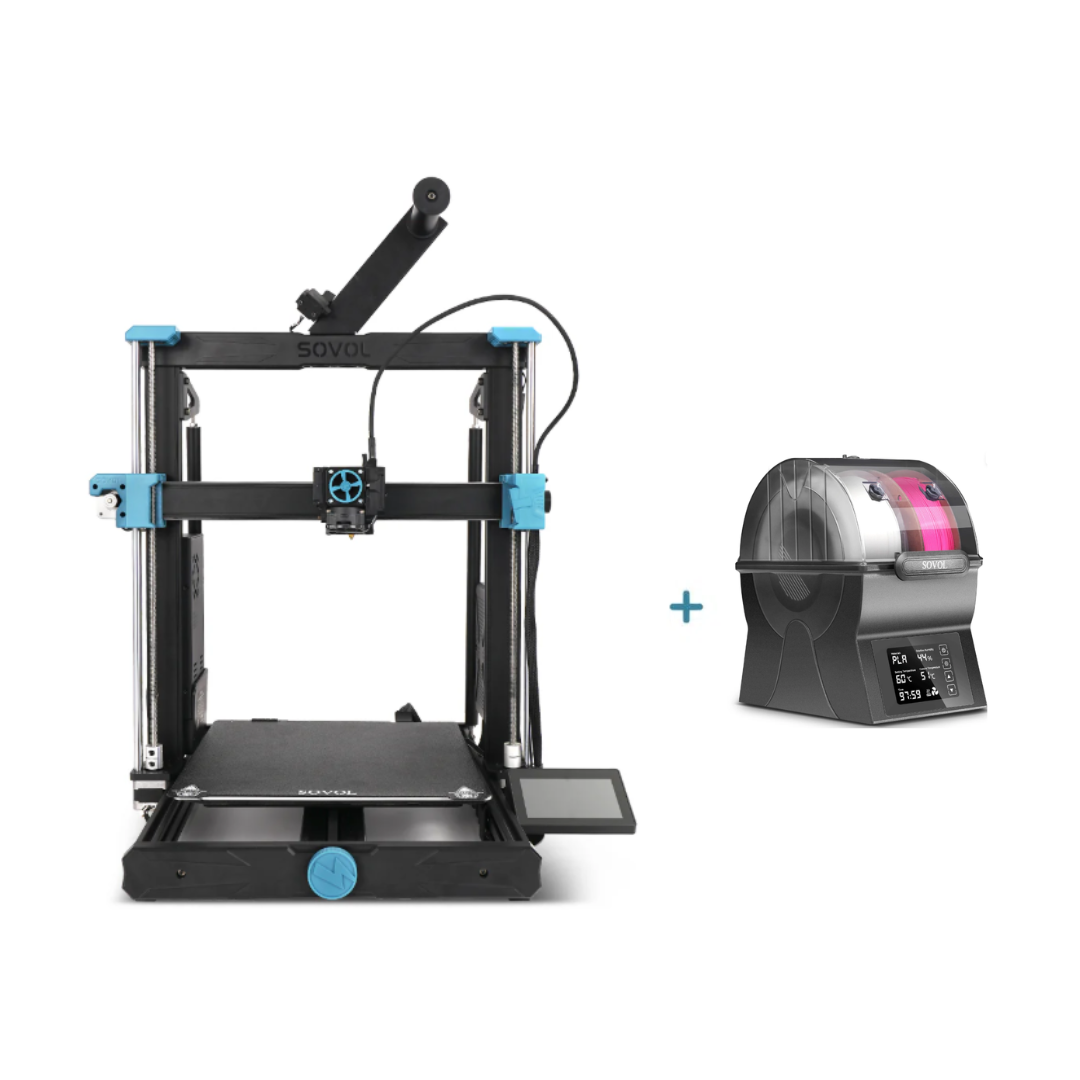

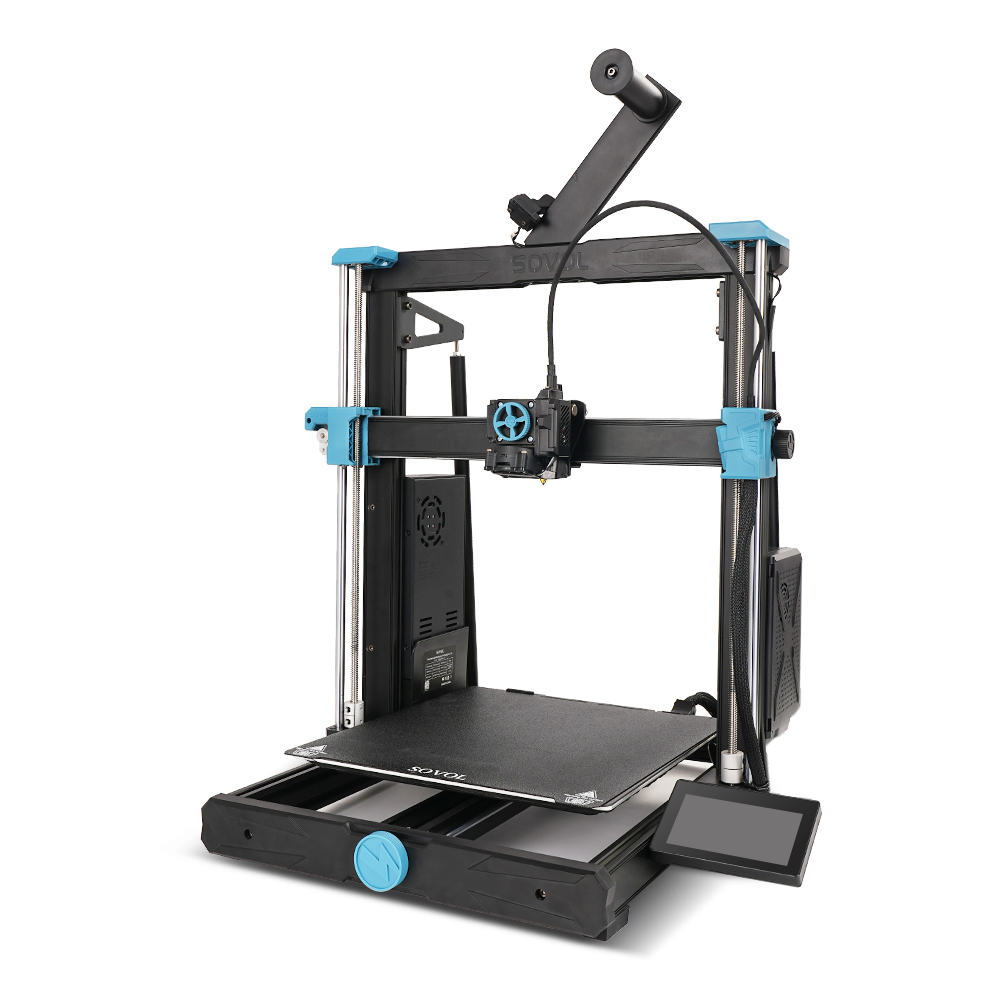

Sovol SV06 Plus ACE 3D Printer
- Printing speed up to 500mm/s
- Build volume: 300*300*350mm³
- Firmware & software open source

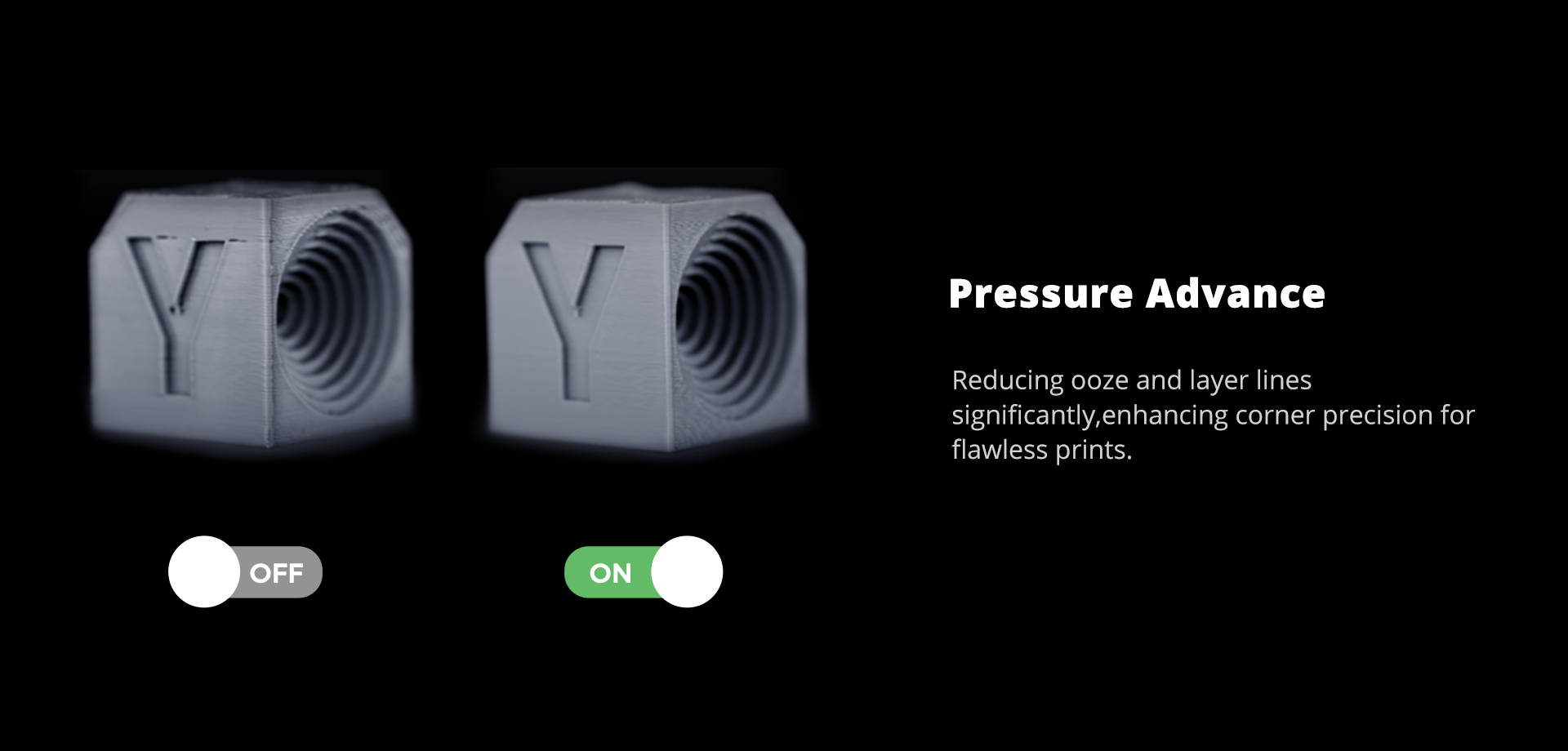

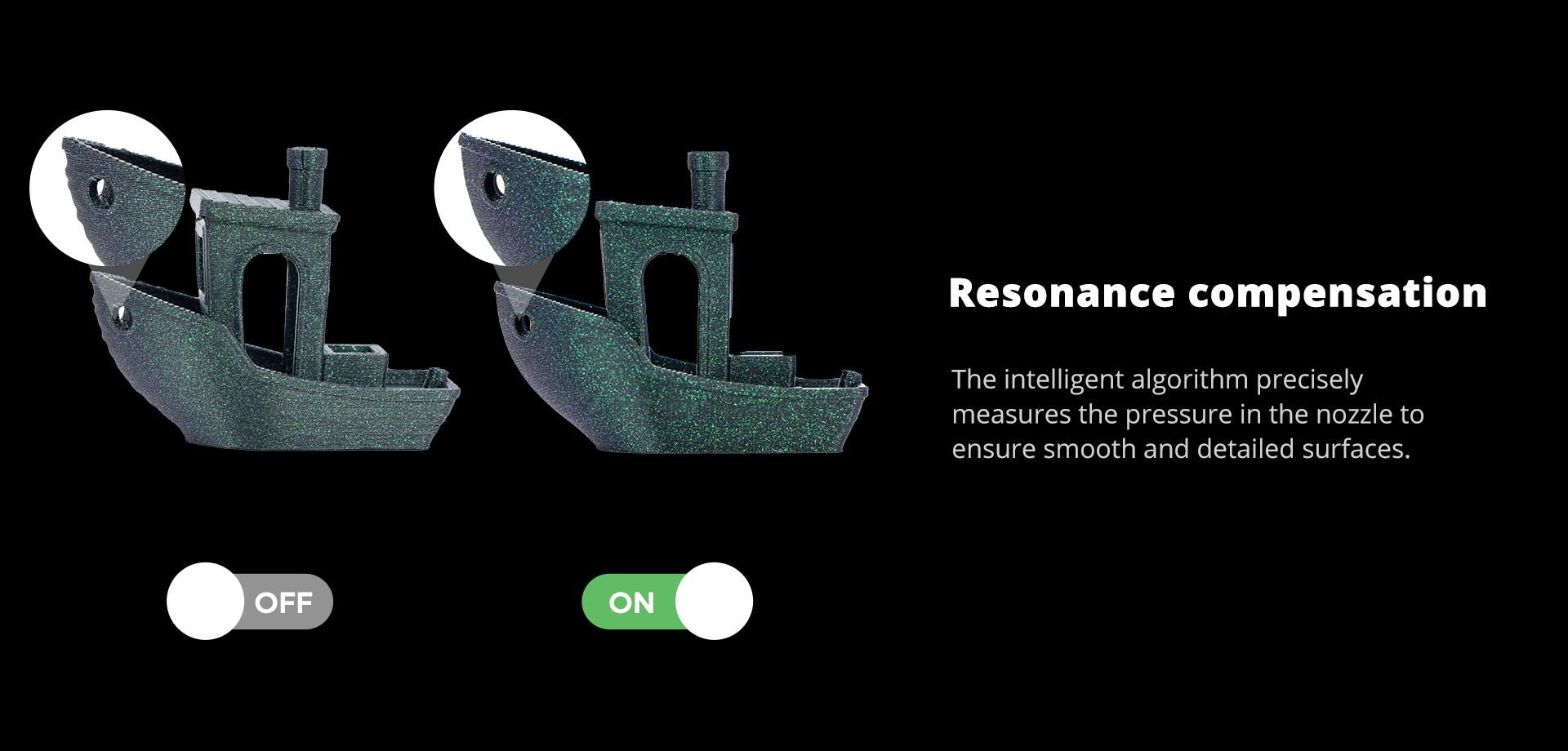

- Pressure advance & vibration compensation
- Full-auto leveling & Adaptive probing
- Stable Z-axis tie rod support
- Real-time Monitoring
- Support OTA update

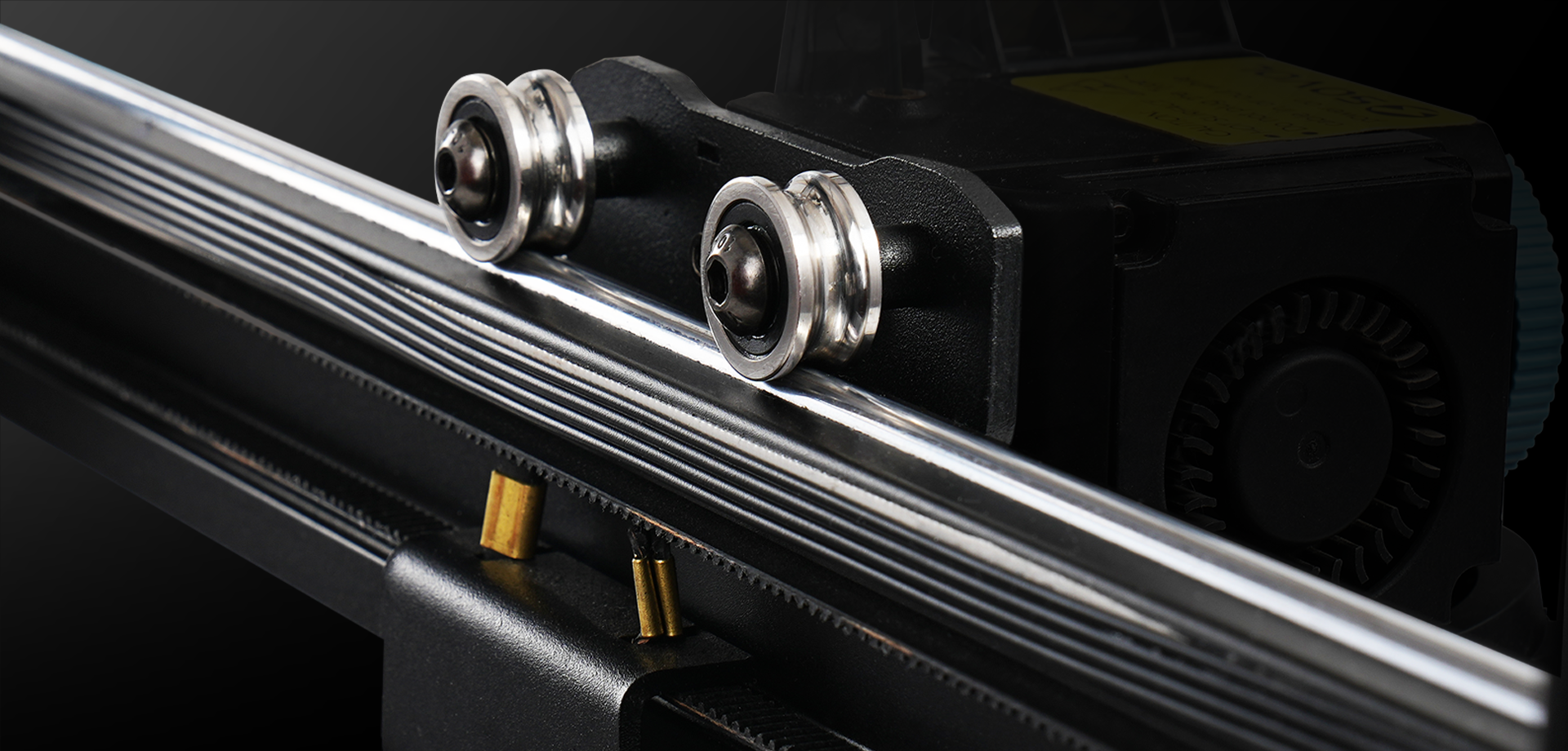

Dual Axis Core Metal Bearings And Rails
The X and Y axes are equipped with Sovol's new dual axis core metal bearings and all-metal rail system, significantly improving the reliability and lifespan of the 3D printer. Compared to traditional V-shaped POM wheels, this not only enhances structural strength and extends lifespan, but also reduces noise during printing, making it smoother and more efficient.
Full-auto Leveling Bed
Auto-leveling: The sensor automatically measures Z-axis offsets and adjusts the Z-offset to ensure precise leveling.
Adaptive Probing: Adjusts probing area based on the model's footprint, reducing preparation time.
Dual Z-axis Motors: Ensures efficient and stable leveling.
The Secret to More Accurate Printing
Open Source
You can customize both hardware and software to meet specific needs, enabling tailored solutions and innovations. This flexibility allows you to iterate, upgrade the 3D printer anytime, and achieve creative breakthroughs.
Printing Speed up to 500mm/s
Harnessing advanced technology to deliver rapid printing without compromising on intricate details, resulting in impeccable, high-quality print models. Fast print enhanced overall production efficiency greatly.
Stable Z-axis
The Z-axis is reinforced with diagonal rod supports, forming a sturdy triangular structure to minimize wobbling during high-speed printing and enhance printing precision.
Built-in Camera

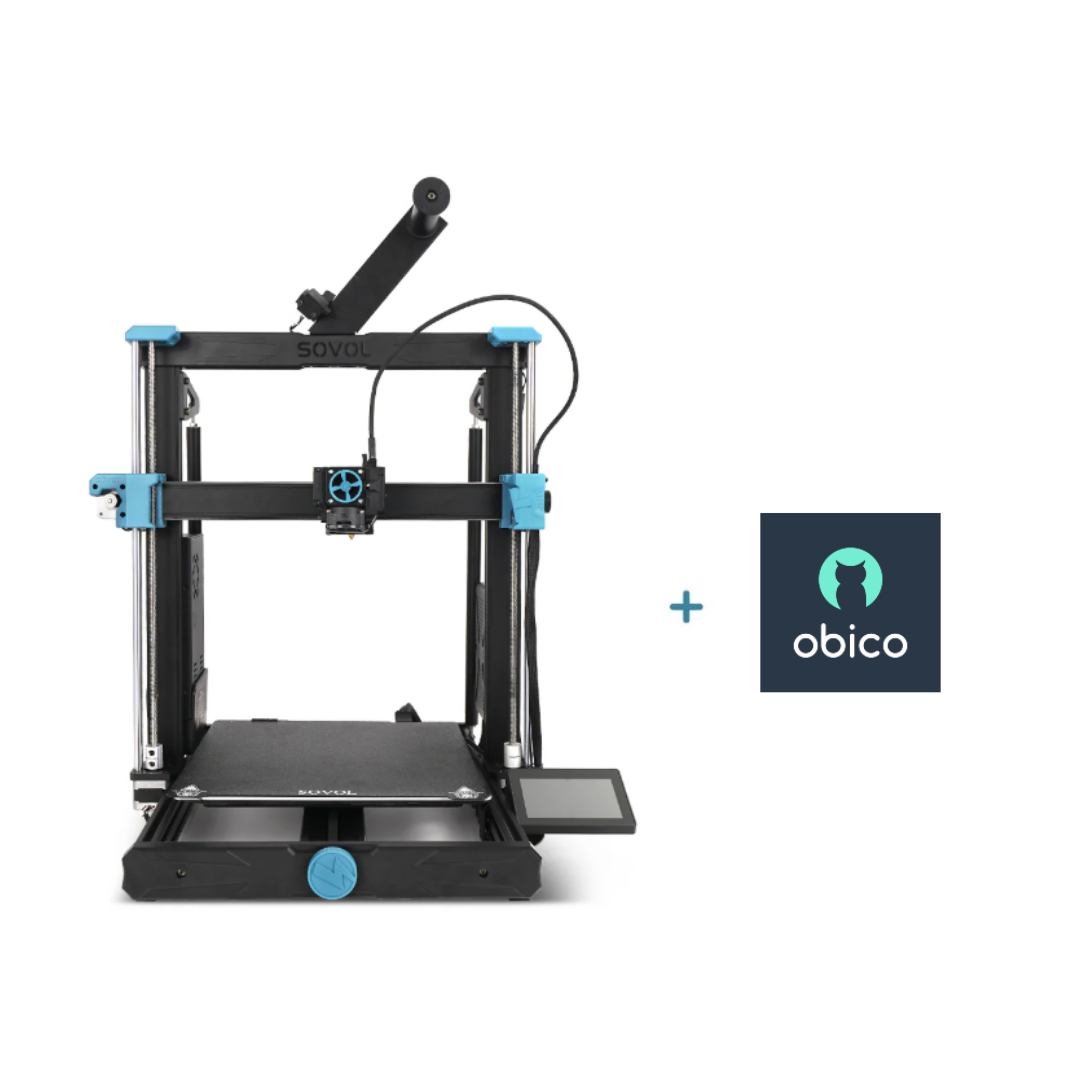

Defect Detection (with Obico App): The system can automatically stop printing when a "spaghetti monster" is detected, based on real-time camera monitoring.
Remote Control: Monitor the printing status in real-time via Obico and control the printer remotely.
Timelapse Photography: Capture stunning printing processes and create condensed videos of the print, ready to share on your social media.
Advanced Planetary Dual Gear Extruder
Equipped with a planetary dual gear extruder featuring a 1:7.5 gear ratio, ensuring lightweight construction and powerful, consistent output. With a 300℃ high-temperature nozzle, the SV06 Plus ACE supports a wide range of materials: PETG, TPU, PLA, ABS, etc.
Powerful 4020 Fan for Quick Cooling
The robust 4020 high-speed ball bearing fan generates strong airflow for the rapid cooling of printing materials. This effective cooling solution minimizes warping and enhances layer adhesion, ensuring high-quality prints with precision and consistency.
4.3-inch Touch Screen
Everything at Your Fingertips: Complete all settings with a simple tap on the screen, including auto-leveling the bed, previewing prints, and one-click printing.
Filament Runout Detection
The intelligent system automatically monitors filament levels and pauses printing if the material runs out or breaks, preventing wasted time and resources.
Intuitive UI
4.3 inch capacitive touch screen as easy as your smart phone. You don't have to be a 3D printing expert to use the SV06 Plus ACE.
300*300*350mm
Whether you're creating detailed prototypes, intricate models, or functional parts, the big build area ensures you have the freedom to bring your ideas to life without limitations.
Product specification
300*300*350mm³
500mm/s
15000mm/s²
Planetary Double Gear, Reduction Ratio 1:7.5
≤300℃（572℉）
Ceramic Heating Plate
0.4mm(Included), 0.6mm, 0.8mm
100℃（212℉）
Double-sided Textured PEI Plate
Klipper (3308 Chip)
RAM: 513M; Flash: 8GB (eMMC)
Standard: Orcaslicer; Compatible with: Prusaslicer, Cura
WiFi (2.4 G), LAN, U Disk
4.3-inch Capacitive Screen
PLA, PETG, TPU, PVA
Default: 640*480P, Max: 1080*720P
510*575*710mm (Includes Screen and Filament Holder)
500W/24V @100-240 VAC, 50/60Hz
Yes
None
Yes
