Direct Drive Extruder
With direct drive feed, it is capable of handling a variety of materials including PLA, TPU, PETG,ABS,Wood, etc. It typically provides a more accurate extrusion and allows for faster retractions.
Meanwell Power Supply
Built-in branded Meanwell power supply ensures stable and sufficient power, heat up the hotbed and nozzle fast. Certified power supply also can protect your printer from unexpected power surges.

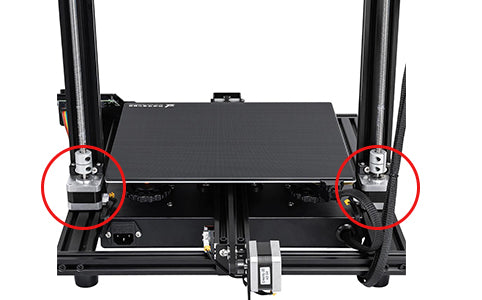

Dual Z-axis Design
Two Z-axis screws and stepper motors drive the vertical axis of the SV01, improving accuracy and precision, resulting in a specified Z-axis accuracy of 0.001mm. add a "pro" level to the printer.
Auto-leveling Sensor Location
This is one of the most popular 3D printer upgrades, but not for everyone,
it’s a good idea to not add to the printers price with a feature many people won’t want, while making it easy to
upgrade for those that do want to.
Tempered Glass Build Plate
Providing a superior gripping surface that negates the need for glue or
hairspray while also making prints pop off with ease once they have cooled to room temperature.
Thermal Run away Protection
So many 3D printers do not have this basic safety feature, to ensures your 3D printer stops sending power to heating elements in the event of an error. This can prevent catastrophic overheating.
Widen X-axis Frame
Stable Printing Process. Aluminium Frame. High strength aluminium extursion. Enhanced stability and reliability. Part of the sheet metal with lively color in light blue.
Resume Printing
In the event of a power outage, whether a tripped fuse or an accidental unplugging, the SV01 will simply ask you if you want to resume from where it stopped. Again, this is a print-saving feature that can easily save you from canning hours of printing.
Clean Cable Mangement
Great cable Management. Easy for troubleshooting.
Filament Detector
In the event of your filament running out too soon, the SV01 will detect this and pause your print so you can fit a new spool of filament and resume the print, saving you from failed print disaster!
MACHINE PARAMETERS
-
TypeSV01
-
Molding TechFDM Fused Deposition Modeling
-
Printing Size240X280X300mm
-
Precision±0.1mm
-
Layer Thickness0.1-0.4mm
-
Nozzle Diameter0.4mm
-
Nozzle NumberSingle
-
Nozzle Temp≤260℃
-
FilamentTPU, PLA, ABS, PETG,WOOD
-
Filament Diameter1.75mm
-
XY-axis positioning accuracy0.012m
-
Z-axis positioning accuracy0.001mm
-
Working ModeOnline or SD card offline
-
File FormatSTL，OBJ，AMF
-
Slice SoftwareCura、Simplify3D, Prusa slicer
-
Motherboard VersionATmega 2560
-
Input115V/230V AC, 24V
-
Output350W,24V
-
Working Power270W
-
Hdat Bed Power220W
-
System SupportWindows XP/ Vista/ 7/ 10, Mac, Linux
-
Motor Parameters42-40 Step Motor, 42-34 Step Motor
Dimension and Weight
-
Product Size500*550*540mm
-
Package Size620*570*270mm
-
Product Weight9.8KG
-
Package Weight14KG
Package Included
